Kenwood

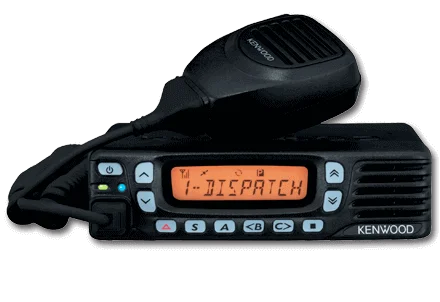

TK-7360HV/8360HU
If your radio frequencies are widely spread, KENWOOD's TK-7360 and YK-8360 extra-wide bandwidth mobiles may be just the ticket for your application, providing full band coverage with no degradation in performance. The user-friendly front console boasts a bright backlit 10-character display that is readable day and night, and this model boasts 128 channels, 10 programmable function keys, MDC-1200 ANI, and KENWOOD's Fleetsync signaling feature set.
Performance Characteristics
Frequency Band:
VHF/UHF
Frequency Range:
136-174 MHz / 450-520 MHz
Power Output:
5W - 25W, 5W - 50W, 5W - 45 W
Number of Channels/Groups/Zones:
128 Channels / 128 Zones
Channel spacing:
25 kHz Wide /12.5 kHz Narrow
Physical Characteristics
Dimensions W x H x D
6.3 x 1.7 x 5.4 in
Weight
2.6 lbs
Keypad / Keys
10 Programmable Function Keys
Display
13-Segment LCD
User Environment
Operating temperature
-22˚ F to + 140˚ F
Mil spec
MIL-STD-810 C/D/E/F/G
IP Standards
IP54
- Conventional & LTR® Zones
- 10-Character Alphanumeric Aliases
- Backlit LCD & Keys
- Function/Status LCD Icons
- Blue Function / Status LED
- Transmit /Busy / Call Alert LED
- 10 Programmable Function Keys
- Emergency / AUX Key
- Front Panel Speaker
- Companded Audio
- Voice Inversion Scrambler Built-in
- 16 Scrambler Codes (per CH)
- Encryption / Board Control
- Emergency Call Features
- Lone Worker Alert
- DTMF Encode / Decode
- Special Alert Tone Patterns
- Busy Channel Lockout
- Time Out Timer
- Timed Power Off
- DB15 Accessory Interface
- 8 Programmable I/O Ports
- Ignition Sense
- Public Address / Horn Alert Output
- MIL-Spec Standard Mic
- MIL-Spec 12-Key DTMF Mic Option
- Windows ® Programming & Tuning
- Easy Option Ports (26-pin)
- Cloning
- Voice Guide & Storage (Option)
Brochures
 | KMB-34 Control Station Mounting Case for KPS-15 Power Supply and Mobiles (excludes TK-5x10/6110 series). |
 | KMC-59C Control Station Desktop Microphone (8-pin mod. plug) |
 | KMC-9C Control Station Desktop Microphone (8-pin mod. plug) |
| KPS-15 DC Switching Power Supply (117/230 VAC; 23A max. continuous, 25A peak) |
 | KES-3S External speaker (compact low profile; black case; 3.5 mm phono plug-in) |
 | KES-5 External speaker, 40W max input |
 | KMC-35 MIL-SPEC Standard electret mobile microphone (8-pin mod. plug) - same as supplied |
 | KMC-36 MIL-SPEC Standard electret mobile microphone with 12-key DTMF (8-pin mod. plug) |
 | KCT-18 Ignition sense cable (requires KCT-60M Acc. Cable Option) |
 | KCT-36 Extension Cable for KCT-34/35/39/40M/60M; 117.6 inches (9.8 ft) |
 | KCT-60M DB15-to-15pin Molex Adapter Cable |
 | KLF-2 Line Filter (suppresses alternator whine, 25dB, 25A max). |
 | KMB-10 Key lock adapter |
- TK-7360HVK 136-174 MHz 50W, 128 CH / 128 Zone CONV-& LTR
- TK-8360HUK 450-520 MHz 45W, 128 CH / 128 Zone CONV-& LTR
